Analytics Portal

The CSAP analytics portal retrieves data from the CSAP Events Service to provide extensive operational and performance reports. Everything from the aggregate CPU consumed across a specified application, host resource (cpu/disk/memory,..), service resources and work produced, to user activity reports.

Contents:

• Aggregation Analytics - collected data is aggregated per day and analyzed
• Time Line Analytics - collected data shown on graphs based on collectected interval
• Events Browser - display/search events: user stops a service, agent uploads data, etc.

click diagrams to enlarge to enlarge

Aggregation Analytics

Screenshot	Description
	Landing Page aggregate reports (cpu, user activity, log rotations, ...) across all services on all hosts ability to compare different application lifecycles - how testing in non prod relative to production loads.
	Host Summary Report table view allows sorting by attibute to identify which host is consuming the most, the least, etc configurable time periods, filters, etc.
	Host Summary Compare selectable time periods allow for before / after comparisons improvements and worsening are quickly identifiable
	Host Attribute Comparison: CPU Load Any of the attributes collected can be compared to each other, or previously collected shown is cpu load

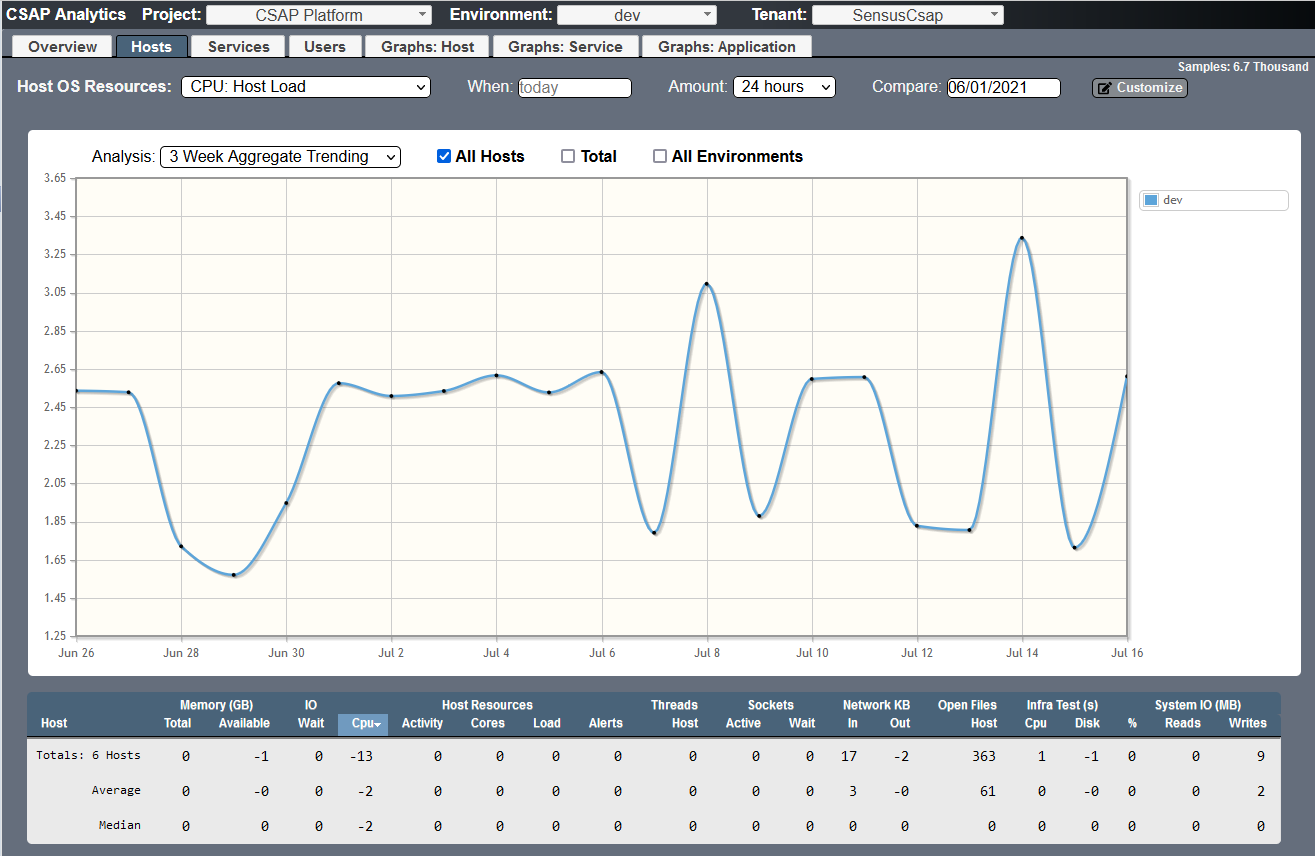

	Host Attribute Aggregate Trending: CPU Load Addresses: How is my application Host CPU Load trending over X weeks.

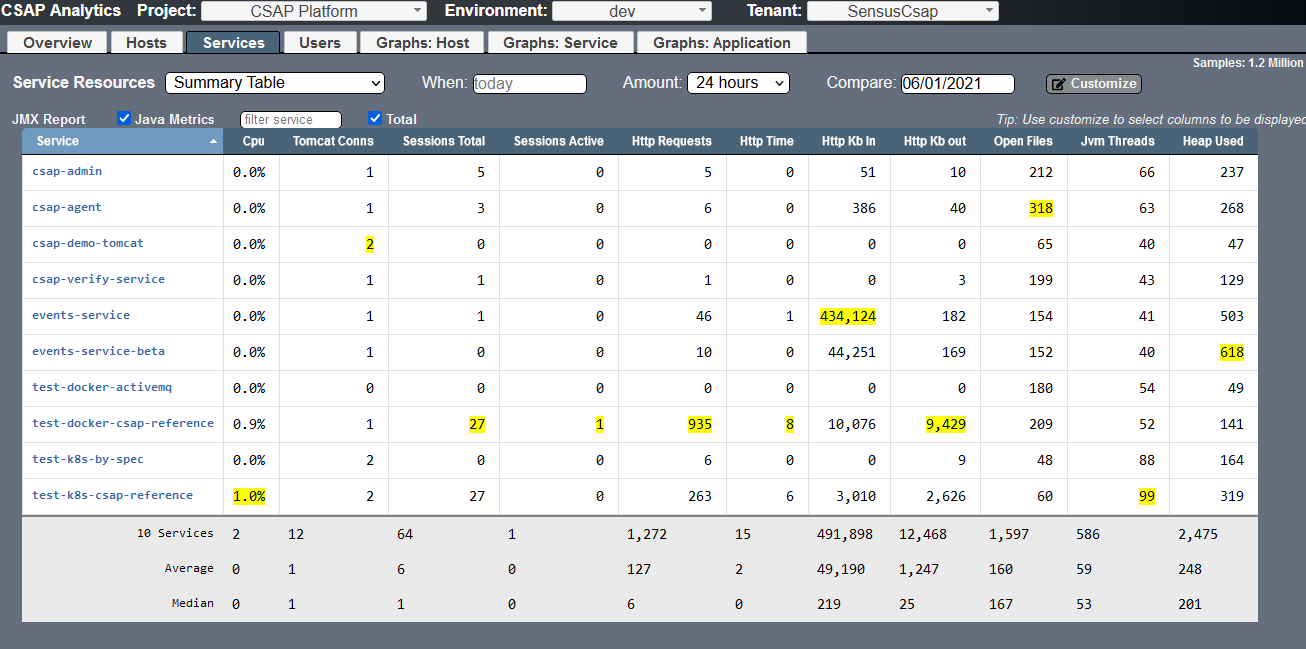

	Service OS Resources - All Services, All Instances Similar to Host performance, OS resources for services can be viewed and analyzed
	Service OS Resources - 1 Service, All Instances across a wide number of instances - there can be significant variability in resources consumed highlights a single service deployed on many hosts
	Service Threads Showing relative thread count across all services
	Java Summary - All services For java based services, key fields (jvm heap, user sessions, etc.) are also available.
	Java User Sessions - session leak Note the active user growth. It was only occurring on specific host instances

click diagrams to enlarge to enlarge

Time Line Analytics

Screenshot	Description
	Host Performance Comparison each line on the graph reflects resource consumption per host NOTE: graphs are shown stacked; but checking lines will unstack
	Smart Select when dealing with large numbers of hosts - using smart select to filter outlier results. shown: top 10 hosts with highest load average compared the 2 hosts with the lowest load average
	Service - OS Performance multiple instances of a given service are deployed for scalability / availability each line on the graph reflects resource consumption for a specific service instance shown: the same service - but deployed on different hosts based on traffic distribution, specific functional use cases - resource profiles over time can/will vary NOTE: graphs are shown stacked; but checking lines will unstack
	Service - Java Performance Service shown: csap data service (receive data from CSAP agents) reference: CSAP Events Service dropdown filters available: http data, jvm heap, java thread. jvmHeap, unstacked:
	Service - Application Performance Service shown: csap data service (receive data from CSAP agents) reference: CSAP Events Service Note: application data is domain specific

click diagrams to enlarge to enlarge

Events Browser

Screenshot	Description
	Launch Points Csap Events dashboard is integrated throughout the [Management Portals] shown: the [Application Portal] landing page: clicking on event count or user activity opens the event browser with filters preselected reference: CSAP Events Service
	Browser: Filtered by User Events Events browser shows events received shown: events filtered by /csap/ui
	Browser: Filtered by host reports Launched from Analytics Landing Page shown: Host Summary table - filterd by cores >= 4, followed by reports
