This interpreter let the user input, and debug, brainfuck code in a visual manner using only body gestures – keyboard are completely optional.
Brainfuck is a an esoteric programming language created by Urban Müller in 1993. When the program starts, you have a array initialized to only zeros. Like this. Some implementations have a fixed array length of 30,000 items. Others, like mine, just adds new cells to the array when it gets full.
[0][0][0][0][0][0][0][0][0][0]
When the program starts, a cell pointer points to the first cell like this. From now on I will refer to the cell pointed to by the cell pointer as "the current cell".
[0][0][0][0][0][0][0][0][0][0]
^
The programming language brainfuck has only eight commands, all of them is only a simple character.
- > : move cell pointer to the right.
- < : move cell pointer to the left.
- + : increment the value in the current cell. Only 8 bits, so it wraps around from 255 to 0.
- - : decrement the value in the current cell. If 0 is decremented, it wraps around to 255.
- , : input, one character input from standard input. The ASCII value of the character is stored in the current cell.
- . : output, the ASCII character that corresponds to the number in the current cell is sent to standard output
- [ : start a loop, if current cell value is 0, jump past corresponding end of loop
- ] : end a loop, jump back to corresponding start of loop, if current cell value is not 0
That's all there is to say about brainfuck.
Bodyfuck is a gestural extension of brainfuck, created by Nikolaos Hanselmann in 2009. Based on a YouTube video that demonstrates his usage, and a few articles I have recreated an interpreter for this very strange language.
That's all there is to say about bodyfuck.

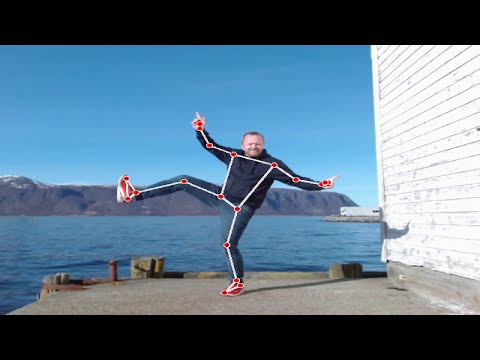

Using the MediaPipe library from Google, it was quite easy to interpret body gestures from a video stream running from my laptop. This is on-device machine learning, but it runs quite smooth on my five year old laptop. The library gives me 33 body landmarks, and their position, for every frame. I use this information to calculate different moves, like raising.
I use Open CV for streaming the video from my webcam, and also to draw on the video stream.
- For each recognized move, the move is drawn on screen.
- The complete brainfuck code is drawn on screen.
- When running/debugging the code, the current brainfuck character is highlighted.
- When running/debugging the code, I draw the eight first cells of the datastructure at the bottom of the screen.
- Increment current cell: Raise one hand.
- Decrement current cell: Duck below threshold.
- Move cell pointer right: Move to the right third of the screen.
- Move cell pointer left: Moce to the left third of the screen.
- Start a loop: Stay at the left third of the screen for more than 1 second.
- End a loop: Stay at the right third of the screen for more than 1 second.
- Output: Both arms stretched out, horizontaly.
- Start program: Clap your hands.
- Delete all code: Clap your hands twice. This is the only way to deltete code, in the original. One small typo, and you'll need to start over.
Notice the input is not implemented, neither by me nor Nikolaos Hanselmann
- Double increment: Raises both hands at the same time. Implemented because brainfuck/bodyfuck normally involves a lot of incrementing.
- Delete single character: Facepalming with your right hand. Implemented because humans make typos!
- Single step code intepreter when paused: Point to the right with a straight right arm.
- Single step back when paused: Point to the left with a straight right arm to travel back in time!
When the program starts you will see a video stream from your webcam. Any code you input will be shown with black background on the top of the screen. If you type a lot of code, you will see the four last lines. For improved readability five consequtive +'es og -'es will have a space after them. This makes it easier to read a lot of increments in a row, as you can count groups of five.
In the editor you can do the following
- Input code.
- Delete last character with the facepalm gesture.
- Delete all code with the double clap.
- Enter the interpreter with the single clap.
When the interpreter starts, the code will begin running at variable speed. At the top of the screen you will see the code on a transparent black overlay over the video. The current character will be highlightes, and inside a loop the code will run faster, because it's probably not that interesting to see the same loope execute over, and over, and over. At the bottom of the screen you will see the eight first cells, with their values and the cell pointer.
In the editor you can do the following
- Pause or restart the code execution with a single clap.
- Restart the code execution with a single clap, if it's execution has finished.
- Exit the interpreter (return to the editor) with a double clap.
- When the interpreter is paused (with a single clap), point to the right (straight arm) to run the code a single step forwards, point to the left (straigh arm) to run the code a single step backwards.
In addition to this, the brave amongst you, can edit the code directly in the interpreter WHILE the code runs! Are you confident in your own coding skills to start executing the program you are halfway finished writing, knowing you will be able to finish your code before the interpreter catches up?
Note: When live coding, the interpreter will halt if your code contains incomplete loops. I.e. an [ without a matching ], or the other way around.
For debugging there are some keyboard commands available
- 1: Show/hide the code
- 2: Show grid lines, to calibrate how far to the right/left you'll need to move, and how low you need to duck
- 3: Delete single character
- 4: Clear all code
- 5: Pause code input
Of course, the use of keyboard commands is frowned upon by the bodyfuck community.
Enjoy!
