This project’s purpose was to evaluate the applicability of super resolution algorithms to a business process of Mattoboard, a startup company. Mattoboard (https://mattoboard.com/) builds 3D online material boards for interior designers. Some examples of the 3D material boards are shown below.
The types of images dealt with by Mattoboard encompass interior materials such as tiles, stones, woods, fabrics, carpets, wallpapers, metals, glasses, etc. The raw images of these materials are typically obtained from suppliers. Then the raw images need to be upscaled and converted into 3D PBR objects. This process is currently being done manually by hired designers. If any or all parts of this process can be done automatically, it could tremendously save them cost and time. I focused on the upscaling part of the process.
Various super resolution algorithms were reviewed through comparisons of the output quality, training codes accessibility, and quick inferences wherever possible. Models reviewed include DATSR, EDSR, ISR, GLEAN, BAM, DASR, and most importantly the SRGAN family (SRGAN, ESRGAN, Real-ESRGAN, and A-ESRGAN). After visual inspections of the outputs and comparisons of PSNR or NIQE scores reported by the authors, DASR, Real-ESRGAN and A-ESRGAN made it to the final list. In terms of documentation for implementation, all these three models provided codes for training in their GitHub pages. After further review of the training codes and output quality, I decided to go with A-ESRGEN (github) for further training, especially the Multi model where two multi scale U-net based discriminators were used instead of a single discriminator.
Mattobaord provided me access to their AWS EC2 server, so all the training and inferences were made on the EC2 server.
Various raw material images obtained from the web, typically from material suppliers’ webpages, were collected. This full dataset has 6,125 images of various materials. A reduced version of the same dataset was used in a training as well, where one-colored and no-pattern samples were removed. This reduced dataset has 4,750 images. This resulted in two different trained models for comparison.
First, before any fine-tuning or training, I made inferences using the three pre-trained models (Real-ESRGAN, A-ESRGAN-Single and A-ESRGAN-Multi models) to set the basis for comparisons.
It was very hard to say one is better than the other purely based on visual inspections because the results varied depending on the types of materials (fabric vs. tile).
While there are many good quality outputs, I am presenting some of the lower quality examples below to hightlight the weaknesses of the current models.
From Left to Right Columns: Original-Low Resolution >>> Real-ESRGAN >>> A-ESRGAN-Single >>> A_ESRGAN-Multi
- One noticeable thing about the outputs of Real_ESRGAN was the change of the color tone. That is, most of the upscaled outputs slightly lost yellow tone and projected whiter tone.
- For all models, fabrics and carpets seemed to be the toughest ones to upscale as most outputs failed capturing the texture. Some of them look much worse than its original low-resolution version.
While the outputs of the A-ESRGAN-Multi scale model weren’t necessarily the best, according to the authors of A-ESRGAN-Multi, the multi scale discriminators model captures the texture better. So I chose A-ESRGAN-Multi for further training hoping it would help better capture the fabric and carpet textures.
Three training approaches were performed with the A-ESRGAN-Multi model.
- Fine-tuning with the full dataset
- Training 1: Initialization of generator and training of A-ESRGAN-Multi using the full dataset
- Training 2: Initialization of generator using the full dataset and training of A-ESRGAN-Multi using the reduced dataset
Fine-tuning didn’t make much difference from the original pretrained model. So I moved on to full training.
According to the authors, A-ESRGAN is trained in two stages, which have the same data synthesis process and training pipeline, except for the loss functions. This training process is the same as for Real-ESRGAN.
- First train Real-ESRNet with L1 loss from the pre-trained model ESRGAN.
- Use the trained Real-ESRNet model as an initialization of the generator, and train the A-ESRGAN with a combination of L1 loss, perceptual loss and GAN loss.
git clone https://github.com/stroking-fishes-ml-corp/A-ESRGAN.git
Under the newly created A-ESRGAN directory:
pip install basicsr
Generate multi-scale images - downsample material images to obtain several Ground-Truth images with different scales
python scripts/generate_multiscale_DF2K.py --input datasets/materials --output datasets/materials_multiscale
Create a folder to store the meta information, which is created as the next step
mkdir -P ./datasets/meta-info
Prepare a txt for meta information
python scripts/generate_meta_info.py --input datasets/materials_multiscale --root datasets --meta_info datasets/meta-info/meta_info_materials_multiscale.txt
Download pre-trained model ESRGAN into experiments/pretrained_models
curl -L 'https://github.com/xinntao/Real-ESRGAN/releases/download/v0.1.1/ESRGAN_SRx4_DF2KOST_official-ff704c30.pth' > ./experiments/pretrained_models/ESRGAN_SRx4_DF2KOST_official-ff704c30.pth
Modify train_realesrnet_x4plus.yml file to set hyperparameters
vi options/train_realesrnet_x4plus.yml
Train with a single GPU in the debug mode
python train.py -opt options/train_realesrnet_x4plus.yml --debug
The formal training with the --auto_resume argument to automatically resume the training if necessary
python train.py -opt options/train_realesrnet_x4plus.yml --auto_resume
After the training of Real-ESRNet, I now have the file ./experiments/train_RealESRNetx4plus_1000k_B12G4_fromESRGAN/model/net_g_1000000.pth
Download the latest A-ESRGAN Generator Model
curl -L 'https://github.com/aesrgan/A-ESRGAN/releases/download/v1.0.0/A_ESRGAN_Multi.pth' > ./experiments/pretrained_models/A_ESRGAN_Multi.pth
Download the latest A-ESRGAN Discriminator Model
curl -L 'https://github.com/stroking-fishes-ml-corp/A-ESRGAN/releases/download/v1.0.0/A_ESRGAN_Multi_D.pth' > ./experiments/pretrained_models/A_ESRGAN_Multi_D.pth
Now I have pretrained model discriminator A_ESRGAN_Multi_D.pth and generator A_ESRGAN_Multi.pth. Modify the yml file to set hyperparameters as needed.
vi options/train_multiaesrgan_x4plus.yml
Train with a single GPU in the debug mode
python train.py -opt options/train_multiaesrgan_x4plus.yml --debug
The formal training with the --auto_resume argument to automatically resume the training if necessary
nohup python train.py -opt options/train_multiaesrgan_x4plus.yml --auto_resume
Inferences were made using the following line.
python inference_aesrgan.py --model_path=experiments/pretrained_models/net_g_150000.pth --input=inputs --output=outputs --tile=200
The training from scratch with the full material dataset (Training 1) improved the image qualities in all categories (image examples are provided later). But it seemed that the model still didn’t capture the texture of fabrics and carpets very well. I re-reviewed the datasets and removed one-colored and no-pattern samples as I thought these samples weren’t really helping the model to learn any textures or even patterns. Then the same training process was repeated with the reduced dataset (Training 2).

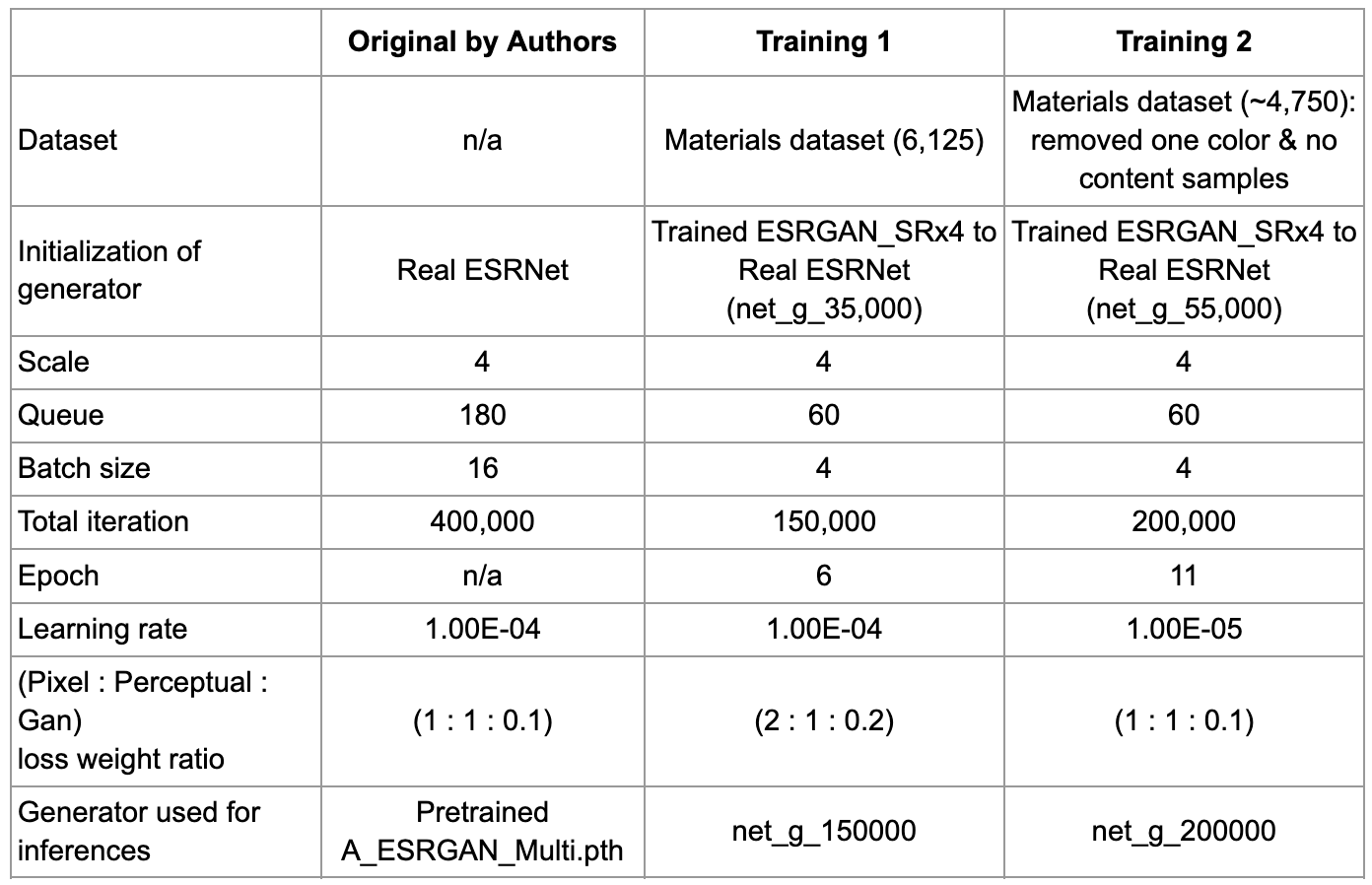

In addition to the different datasets, I made some changes to the hyperparameters for each training. Here is the summary of the hyperparameters used, compared to the original model by the authors.
Following hyperparameters are worth noting as they would have impacted the output quality. Since no ablation study is performed, it is not possible to know how much each of these impacted the quality.
- Initialization of generator: Training of ESRNet was done only once but resulted in multiple checkpoints. Training 1 used the checkpoint at 35,000 iteration and Training 2 used the one at 55,000 iteration. The loss values of 55,000 were slightly better.
- Total iteration: I increased the total iteration for Training 2 as I lowered the learning rate. Retrospectively, I think the iteration should have been increased more to match the learning rate decrease.
- Learning rate: Training 1 used a learning rate of 1e-4, same as the original study. A learning rate of 1e-5 was used for Training 2.
- Loss weight ratios between (Pixel : Perceptual : GAN): The original study used the same ratios between pixel and perceptual losses (1 : 1 : 0.1). I increased the pixel loss ratio to 2, and GAN loss to 0.2 (2 : 1 : 0.2). The rationale behind it is that since I’m dealing with interior material images, where the contents are mostly patterns, the perceptual losses had less meaning. For training 2, the ratio of (1 : 1 : 0.1) is used.
- I once trained the model with a (4 : 1 : 0.2) ratio and the model inferences generated a lot of artifacts, which is a known issue of the pixel loss focused models.
Let's see the performace of the newly trained models: The same lower quality examples are presented below for comparisons.
From Left to Right Columns: Original-LR >>> A_ESRGAN-Multi >>> Training 1 >>> Training 2
- Both Training 1 and 2 Models show improvements from the original A-ESRGAN-Multi inferences for most types of materials, and especially so for fabrics and carpets.
- I was expecting better results for fabrics and carpets from Training 2 Model as the datasets were more focused on those. But interestingly, Training 1 Model outputs look better. I can’t tell whether it is because Training 1 used more pixel loss ratio than perceptual loss, or because Training 2 suffered from lack of iterations while having much lower learning rate. This is because I made changes to multiple hyperparameters all at once. My mistake!!!
- For some types of materials, the outputs of the trained models weren’t necessarily better, just different.
- Outputs by Training 1 Model shows slight loss of yellow tint in most of the samples.
This was a very fun project for me to learn through researching and training different algorithms with different hyperparameters and datasets. Unfortunately, the quality of outputs using the two trained models are not acceptable for Mattoboard.
However, I retrospectively think there are some weaknesses in my training approach. First I had very small number of training dataset especially for training from scratch. In addition, the maximum total iteration number was only 11 epochs. Not enough for pretraining the model. I wonder as well why fine-tuning didn't work well as I think this could have been the ideal case for transfer learning.
This leaves that there still should be good opportunities of making AI upscaling algorithms to work at a commercial level. I plan to come back to this project and try some more later.
Lessons learned: Training with different hyperparameters needs to be more carefully designed in the beginning so that impacts by each can be explained.
I tried Stable Diffusion Upscaler stabilityai/stable-diffusion-x4-upscaler and am very impressed by the results. The Stable Diffusion outputs for some of the examples from above are presented below. The text propmts were left blank for all samples intentionally.
From Left to Right Columns: Original-LR >>> Training 1 Model >>> Stable-Diffusion
This is very exciting and promising for Mattoboard and I will look further into this.
