A Multi-Model, Multi-Modal Agent Based Chatbot on EKS

Objective:

The goal is to design a chatbot with an interface that can assist a user at different tasks. Notably, it can

• perform search on the web
• answer queries regarding an image
• generate images
• answer queries regarding a document
• retain memory of the user's interactions with it.

Additionally, the chatbot needs to be deployable on a scalable backend using Kubernetes.

Tech Stack

The project uses state-of-the-art libraries for inference.

Models used:

• Mixtral-8x7B-Instruct-v0.1 (6.0bpw/exl2)
  • This is used as our main model for the agent. It is also used as the model for RAG.
• SDXL-Turbo
  • A fast image generation model that requires 1-2 steps.
• LLaVA-1.6
  • A multi-modal instruction following modelfor describing uploaded.
• CodeLlama-34b-Instruct-hf (4.65bpw/exl2)
  • An instruction-tuned model for code synthesis
• bge-small-en-v1.5
  • An embedding model used for RAG on uploaded documents.

Inference Libraries used:

• ExLlamaV2
  • A quantization library which claims to have a better compression and inference latency compared to AWQ and GPTQ models. Also, has a number of bits representation. It is used for the Mixtral and Code Llama models. TabbyAPI provides an OpenAI-compatible API for ExLlamaV2 models.
• SGLang
  • An inference library built on top of vLLM with a higher throughput. It has native integration for multi-modal models like LLaVA.
• Text-Embeddings Inference
  • An embeddings inference library by HuggingFace to host our embeddings model.
• TorchServe
  • A production grade library for serving PyTorch models. It is used for the SDXL-Turbo model.

Langchain is used for building the agent.

The frontend has been created in Streamlit. The models are deployed on EKS.

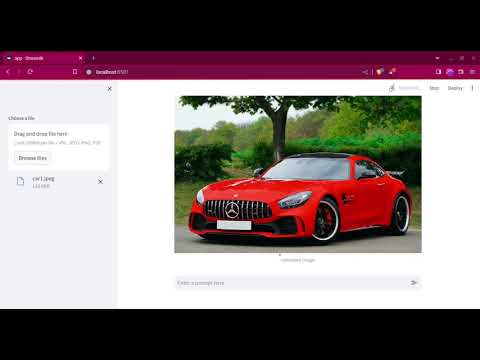

Demo

Optimizing for Scaling

Our models are ~73GB in size! Each time a node is to be provisioned, these files will be downloaded on each node and can take a significant time. This is in addition to the docker images needed for inference. We can implement a few tricks to save bandwidth as well as time - ~14 minutes per model!

See details here.

Key Findings:

• Do not trust LLM benchmarks. A 34B model* with a high-score on HF leaderboard performed extremely poor as an agent.
• Quantization can lobotomize an LLM; performance degrades even at following instructions or choosing the right tool.
• The same prompts might not work for different models.

* not named for legal reasons 😉

Architecture

Click To See Diagram
