perf: async flushing & buffering + lock contention

[domodwyer]

This is a big one that I couldn't break up into anything smaller - sorry!

Happy to talk through the changes if needed, if not, grab a cuppa! 🍵 Large portions of the change are comments, actual LoC change is a small percentage.

---

The main aims of this PR are outlined below, in order of priority:

Make aggregating batches, and writing already full batches asynchronous w.r.t each other

Currently this is not the case. A call to produce() with space in the aggregator goes like this:

1. Acquires the lock covering the aggregator state
2. Successfully adds the data to the aggregator
3. Wait for the linger timeout
4. Acquire the lock over the aggregator state again (same lock as 1.)
5. Whilst holding the lock, flush the batch.

Because the lock is held while the flush happens, all callers to produce() begin queuing up, even though their payloads would be buffered. This means they needlessly incur the latency of the protocol overhead/serialisation/network I/O, only to then have to try and stuff as many payloads as possible into the buffer before the next 5ms linger timer blocks aggregation again.

In an environment where writing to kafka incurs a RTT of ~50ms, we spend ~5ms aggregating payloads before blocking for ~50ms, repeated indefinitely.

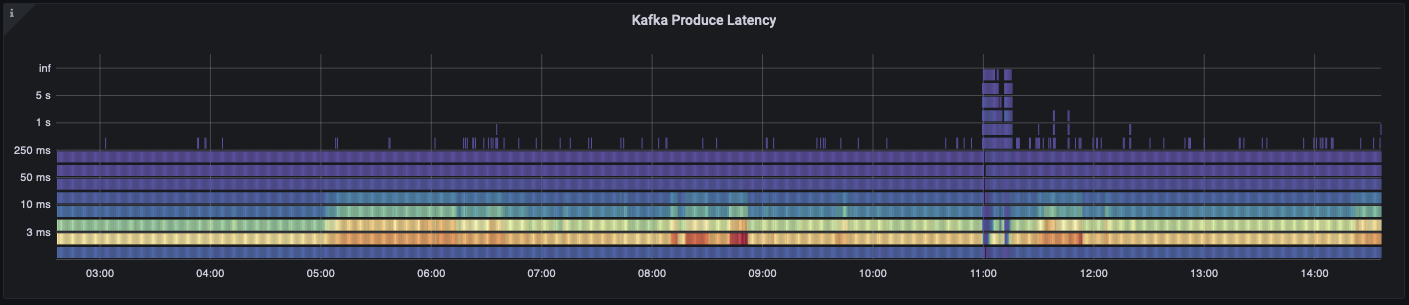

While most Kafka writes are quick, we observe long tail latencies:

After the changes, flushing happens asynchronously, without having to hold a lock over the aggregator state. This allows ~5ms of payloads to be batched up and dispatched, and immediately the next batch begins being built up, allowing near continuous buffer building. This should reduce the overall latency of calls to produce() and increase the throughput of messages to Kafka.

I've been careful to construct the buffering / flushing such that there is no need for an async mutex - given that the mutex is in the buffering hot path, replacing it with a non-async parking_lot mutex (which has far lower overhead) reduces the latency of calls that simply add the payload to an im-memory buffer. This should slightly increase the number of messages we can buffer in the ~5ms linger period.

Flush result readers do not contend with buffering produce() callers

Previously all calls to produce() would lead the task to waiting for either the linger to fire, or the flush to complete:

rskafka/src/client/producer.rs

Lines 435 to 438 in 26af770

	tokio::select! {
	_ = tokio::time::sleep(self.linger) => {},
	r = result_slot.receive() => return extract(r, tag),
	}

However given the low default linger time (5ms) relative to the average RTT latency of a flush (especially under high load), it's probable most, if not all waiters will observe their linger timer expiring before the flush completes and the result is broadcast to the result_slot. I've observed many Already flushed logs in our prod, with no Insufficient capacity in aggregator - flushing to cause the flush in the first place, indicating this happening quite often.

Once the linger timer fires, all the callers proceed to queue up to acquire the aggregator mutex again, unnecessarily serialising readers when their result is available and adding further contention with callers of produce() hoping to buffer their payloads in parallel.

After this PR, only one caller will attempt to acquire the aggregator mutex to initiate a flush, and the rest of the callers can wait on their result broadcast only.

Removing this lock contention allows for more produce() calls to buffer their payloads within the 5ms linger, increasing the message sizes over the wire.

Reading the broadcast result has also been made cheaper by reducing contention of the BroadcastOnce primitive with many readers, switching an exclusive mutex to a many-readers lock - they now no longer have to queue up to sequentially read (+ clone) the results, which should marginally reduce the per-call latency to produce() too.

Useless Wakeups

In the above linger-expired-acquire-lock situation, the readers all .await on the timer, then .await on the aggregator mutex, only to then queue up on the mutex synchronising the peek() call. This causes many useless wakeups only to immediately hit the next Pending await point, as well as unnecessary thread blocking queuing on the non-async results mutex.

Reducing the number of awaits in this path should help reduce the (small) tokio overhead incurred when parking/waking tasks.

Behavioural Changes

None of these changes necessitate a breaking external API change 🎉

Back-pressure

Previously rskafka would allow one single buffer flush to be in-flight. This (very!) effectively applied back-pressure to clients, slowing them down.

After this change, there is no back-pressure and limiting the number of outstanding produce() calls is the responsibility of the caller. Apps can throw as much as they want at rskafka, and it'll do the best it can to keep up, with produce() latencies increasing as load increases.

It is, however, relatively simple to add back-pressure to rskafka using a semaphore if desired.

Tokio

This requires the is_finished() method on the task JoinHandle, which was added in 1.19 and required a min tokio version bump.

---

• perf: async batch flushing & lock contention (9e9d848)

  Rewrites the management of the aggregation buffer to enable asynchronous
  flushing of batched writes, while continuing to build up the next buffer of
  writes in parallel.

  A behavioural change of note: previously there was (synchronous) back-pressure
  applied when a batch was being flushed, and there could only ever be at most 1
  batch of writes outstanding. After this commit this back-pressure is removed
  as a side effect of async flushing, and there is no upper bound on the number
  of in-flight batch writes enforced. Back-pressure can easily be placed back
  into rskafka if it is deemed the responsibility of rskafka, rather than the
  caller, to limit the number of outstanding produce() calls.

  This commit also eliminates lock contention between the callers attempting to
  add to the batch, and those that are waiting for their write result, and also
  minimises the spurious task wakeups caused by all callers waiting on the
  linger timer, before (likely) moving on to wait on the async mutex, before
  finally being able to read their write result over the broadcast channel (also
  a mutex). Now one caller performs a linger dance, while all the others wait
  exclusively on their broadcast handle for the results, avoiding having to wait
  on the aggregation mutex.


• perf: use RwLock for BroadcastOnce (1d5be60)

  Prior to this commit, all the readers (holders of BroadcastOnceReceiver) would
  contend with each other to read the value that has been broadcast. The
  BroadcastOnce type restricts usage to one writer, with many readers, making
  the case of >1 reader contending to read the result common by design.

  A RwLock eliminates the reader contention, preventing the readers from queuing
  up to read their value - it is now a pair of cheap atomic inc/sub to read the
  value, in parallel, for each reader.


[crepererum]

I like the split between "aggregate" and "send batch" that you perform here. I have a couple of questions and remarks.

[crepererum]

This is NOT panic-safe. If batch.background_flush which calls aggregator.flush panics than the entire aggregator is poisoned forever¹. I think we should allow the aggregator to panic and only error the affected inputs instead of all future actions.

Footnotes

1. This BTW is the reason why the stdlib mutexes implement poisoning. ↩

[domodwyer]

That's right - I did consider panics here, but took the view that a panicking aggregator is an exceptional event (i.e. not an recoverable error) and should be propagated up.

We're effectively implementing poisoning here by having the next call take() a None and exploding ourselves - I think it's reasonable to expect panics to be exceptional / fatal, but open to ideas.

[crepererum]

Can this only happen when there are manual flushes involved or are there other cases as well?

[domodwyer]

This block of code intentionally doesn't care why the tokens don't match!

But to answer properly, this can happen two ways:

• A manual call to BatchProducer::flush() causes the buffer to be flushed early. The caller doing the linger either:

  • Observes the result of the flush early, before the linger expires, or
  • The linger fires after the manual flush(), but before the result is broadcast. In this case, this conditional flush becomes a NOP.

• At least two writes to an aggregator are made; the first caller starts lingering, and the second caller observes a full aggregator and flushes the batch before the linger expires. The subsequent flush attempt by the linger is a NOP (which may also take the same early flush path as above).

[crepererum]

Why do we need yet another task here? Isn't there already one that drives the linger and the flushing? Or is this so we have also cancellation safety if there are manual flushes?

[domodwyer]

This decouples the flushing I/O (in the task), and the instantiation of the new batch using the aggregator (in the return below, with the task handle). This lets all new produce() calls progress. The task handle is stored, and later used to wait for all batches to complete flushing when calling the manual BatchProducer::flush().

We need the buffer to be ready immediately to begin accruing payloads, but do not wish to wait for the flush to complete. Unfortunately having the aggregator internal to the client makes this dance tricky.

[crepererum]

There is a flow-chart on the top of this file (GitHub doesn't let me comment there). This one only shows the user-visible data flow and this is all good. From an rskafka developer PoV, I would welcome if the interplay between the producer, the aggregator and the batches (which now contain their own background task) would be illustrated somewhere.

[domodwyer]

I'll knock one up this afternoon and PR it - I think it'll take me a bit of digging around (you're right, the interplay is complex!)
