There appear to be extended HID Proximity keys that are longer than 37 bits that fit into a 44-bit payload (88 raw bits after Manchester encoding, plus the 0x1D preamble for a total of 96 raw bits). These keys don't start with 0b100111 like some extended HID keys supposedly do.
One way to detect these keys is to see if any of the first six bits in the 44-bit payload is a 1. If so, the key is longer than 37 bits. This means the longest key that can fit into a 44-bit payload is 43 bits (the first bit is a 1, followed by 43 key bits).
Also fixed a bug rendering the first nibble of a HID key in `protocol_hid_generic_string_cat_protocol_bits`.
Tested by running `raw_analyze` on known RFID captures:
```
rfid raw_analyze /ext/hid40.raw
...
Frequency: 125000.000000
Duty Cycle: 0.500000
Warns: 0
Pulse sum: 25415
Duration sum: 40179
Average: 0.632544
Protocol: HIDProx [1X XX XX XX XX X0]
Description:
40-bit HID Proximity
Data: XXXXXXXXXX
```
```
rfid raw_analyze /ext/hid36.raw
...
Frequency: 125000.000000
Duty Cycle: 0.500000
Warns: 0
Pulse sum: 28080
Duration sum: 41618
Average: 0.674708
Protocol: HIDProx [03 XX XX XX XX X0]
Description:
36-bit HID Proximity
Data: XXXXXXXXX
```
|
PVS-Studio report for commit |
|
Unfortunately not working on my pets. They have ISO Transponder Microchip 2.12*12mm, think this one - https://www.animal-microchip.com/sale-9568205-professional-iso-transponder-microchip-2-12-12mm-for-animals-identification.html

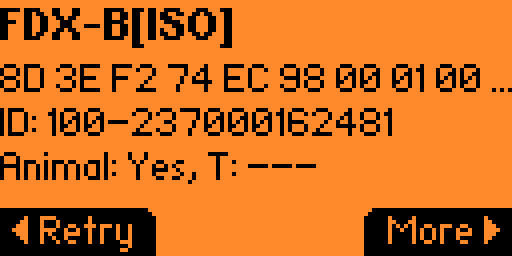

But with your branch there is no reaction at all. On version 0.64.3, I can see the LED indication that the chip is responding Upd. My mistake, I had to choose Extra Actions in the menu. So, now I see that LED is blinking green(or yellow, not sure), but still not reading the microchip Upd2. Found the spot:) Thank you! It is works |
