Don't inline >8 bytes of IL calls in BBJ_THROW

[EgorBo]

Fixes: #78300

public static void Test(int i)
{
    if (i == 0) throw Create();
}

static FormatException Create() => new FormatException(SR.Test);

class SR
{
    public static string Test => "";
}

Codegen for Test, was:

; Method P:Test(int)
G_M000_IG01:
       56                   push     rsi
       4883EC20             sub      rsp, 32
G_M000_IG02:
       85C9                 test     ecx, ecx
       7406                 je       SHORT G_M000_IG04
G_M000_IG03:
       4883C420             add      rsp, 32
       5E                   pop      rsi
       C3                   ret
G_M000_IG04:
       48B9F8A9FF0DFA7F0000 mov      rcx, 0x7FFA0DFFA9F8
       E8A244AE5F           call     CORINFO_HELP_NEWSFAST
       488BF0               mov      rsi, rax
       B901000000           mov      ecx, 1
       48BA18B2EF0DFA7F0000 mov      rdx, 0x7FFA0DEFB218
       E84B74AB5F           call     CORINFO_HELP_STRCNS
       488BD0               mov      rdx, rax
       488BCE               mov      rcx, rsi
       FF15070B2300         call     [System.FormatException:.ctor(System.String):this]
       488BCE               mov      rcx, rsi
       E88750A15F           call     CORINFO_HELP_THROW
       CC                   int3
; Total bytes of code: 74

Now:

; Method P:Test(int)
G_M11252_IG01:
       4883EC28             sub      rsp, 40
G_M11252_IG02:
       85C9                 test     ecx, ecx
       7405                 je       SHORT G_M11252_IG04
G_M11252_IG03:              ;; offset=0008H
       4883C428             add      rsp, 40
       C3                   ret
G_M11252_IG04:
       FF153D1C4500         call     [P:Create():System.FormatException]
       488BC8               mov      rcx, rax
       E835E84E5F           call     CORINFO_HELP_THROW
       CC                   int3
; Total bytes of code: 28

Currently, we almost never inline anything in throw blocks above 16 bytes of IL, but it seems that it's a good idea to not inline small methods too:

Pros:

1. inlining, even for small methods, is expensive (may lead to type load events for cold code we never execute) - I learned that from my "allow inlining in tier0" work.
2. ^ snippet is a great example of code bloated because we inlined a 11 bytes of IL method inside throw
3. Andy planned to not to compile BBJ_THROW at all via partial compilation

Cons:

1. Might regress performance for exceptions by adding call overhead, likely not noticeably. We can handle this via Dynamic PGO (if a throw blocks is not cold according to profile)
2. Sometimes inlining even in cold sections might improve overall type/memory/escape-analysis picture. I personally don't think it's the case here with Exception handling machinery.

[ghost]

Tagging subscribers to this area: @JulieLeeMSFT, @jakobbotsch
See info in area-owners.md if you want to be subscribed.

Issue Details

---

Fixes: #78300

public static void Test(int i)
{
    if (i == 0) throw Create();
}

static FormatException Create() => new FormatException(SR.Test);

class SR
{
    public static string Test => "";
}

Codegen for Test, was:

; Method P:Test(int)
G_M000_IG01:
       56                   push     rsi
       4883EC20             sub      rsp, 32
G_M000_IG02:
       85C9                 test     ecx, ecx
       7406                 je       SHORT G_M000_IG04
G_M000_IG03:
       4883C420             add      rsp, 32
       5E                   pop      rsi
       C3                   ret
G_M000_IG04:
       48B9F8A9FF0DFA7F0000 mov      rcx, 0x7FFA0DFFA9F8
       E8A244AE5F           call     CORINFO_HELP_NEWSFAST
       488BF0               mov      rsi, rax
       B901000000           mov      ecx, 1
       48BA18B2EF0DFA7F0000 mov      rdx, 0x7FFA0DEFB218
       E84B74AB5F           call     CORINFO_HELP_STRCNS
       488BD0               mov      rdx, rax
       488BCE               mov      rcx, rsi
       FF15070B2300         call     [System.FormatException:.ctor(System.String):this]
       488BCE               mov      rcx, rsi
       E88750A15F           call     CORINFO_HELP_THROW
       CC                   int3
; Total bytes of code: 74

Now:

; Method P:Test(int)
G_M11252_IG01:
       4883EC28             sub      rsp, 40
G_M11252_IG02:
       85C9                 test     ecx, ecx
       7405                 je       SHORT G_M11252_IG04
G_M11252_IG03:              ;; offset=0008H
       4883C428             add      rsp, 40
       C3                   ret
G_M11252_IG04:
       FF153D1C4500         call     [P:Create():System.FormatException]
       488BC8               mov      rcx, rax
       E835E84E5F           call     CORINFO_HELP_THROW
       CC                   int3
; Total bytes of code: 28

Currently, we almost never inline anything in throw blocks above 16 bytes of IL, but it seems that it's a good idea to not inline small methods too:

Pros:

1. inlining, even for small methods, is expensive (may lead to type load events for cold code we never execute)
2. ^ snippet is a great example of code bloated because we inlined a 11 bytes of IL method inside throw
3. Andy planned to not to compile BBJ_THROW at all via partial compilation

Cons:

1. Might regress performance for exceptions by adding call overhead, likely not noticeably. We can handle this via Dynamic PGO (if a throw blocks is not cold according to profile)
2. Sometimes inlining even in cold sections might improve overall type/memory/escape-analysis picture. I personally don't think it's the case here with Exception handling machinery.

Alternative fix is to reduce ALWAYS_INLINE il threshold from 16 to 8 for THROW sections, but we might regress jit's throughput.
Another fix is to only handle throw call pattern and leave everything as is.

Let's see the diffs.

Author:	EgorBo
Assignees:	-
Labels:	area-CodeGen-coreclr
Milestone:	-

[stephentoub]

Just for reference, I noticed it while looking at the codegen for the not-yet-merged https://github.com/dotnet/runtime/pull/71590/files#diff-f7c1029305b8ff70a95e36e675c08e17c8f816c5a1be8a204dc42d0595129e18R1419.
(I made that helper NoInlining to work around it.)

[stephentoub]

(And I suspect the diffs may be influenced by such NoInlining in use elsewhere to work around this, e.g. https://github.com/dotnet/runtime/blob/main/src/libraries/System.IO.Pipelines/src/System/IO/Pipelines/ThrowHelper.cs)

[EgorBo]

@dotnet/jit-contrib @jakobbotsch PTAL, Diffs: https://dev.azure.com/dnceng-public/public/_build/results?buildId=85004&view=ms.vss-build-web.run-extensions-tab

I made the PR less aggressive so now the number of size regressions is minimal. The current logic is to inline everything below 8 bytes of IL (e.g. properties) and immediately give up on everything larger where previously we had IL prescan. Number of regressions seem reasonable to me now.

[jakobbotsch]

LGTM in principle.

Any examples of the regressions? I can imagine not exposing some facts, even in the throwing BBs, can hurt codegen in the rest of the function. For example if we no longer inline a function with an argument in S someStruct then that could result in new address exposure.

[jakobbotsch]

Maybe one common case would be instance functions on structs? e.g.:

void M(S s)
{
  if (s.Something())
  {
    throw new ArgumentException("s.Something is " + s.Something());
  }
}

where S is a struct.

[EgorBo]

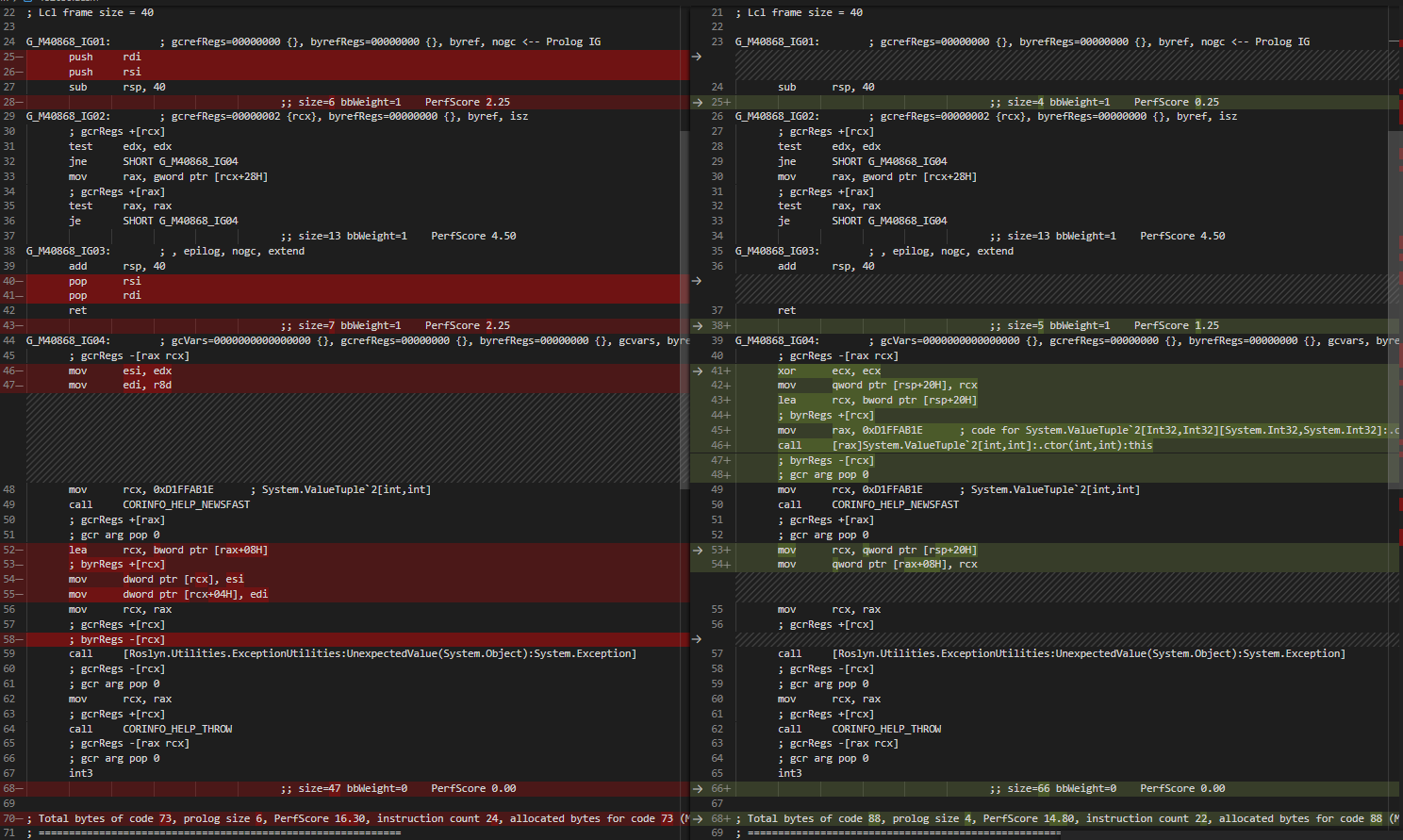

@jakobbotsch I was not able to find any case like that in the diffs. What I did find is the cases like these:

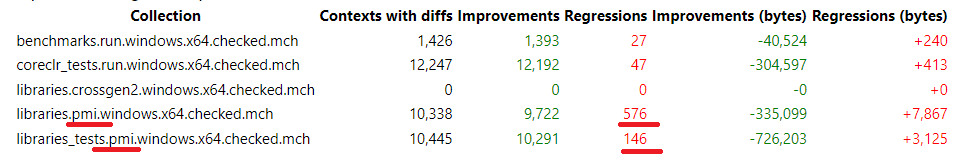

I tried to adjust the heuristic to not do that for methods returning structs by value but it hid many previous improvements. Overall the number of regressions is "big" only in PMI collections:

From the same methods with different generic types (pmi)

[jakobbotsch]

How come there's no diffs in the crossgen2 collections?

[EgorBo]

How come there's no diffs in the crossgen2 collections?

crossgen2 uses more conservative inliner while I did my changes in ExtendedDefaultPolicy.
I can move them into the baseclass so crossgen will also pick it up.

[EgorBo]

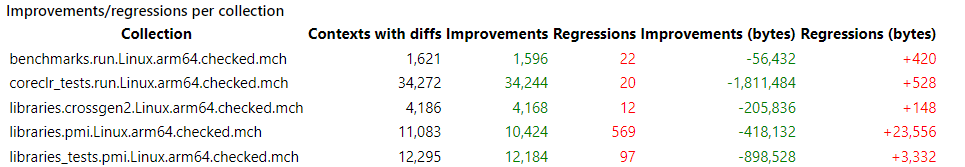

new diffs with crossgen2 included, thanks for the suggestion

[BruceForstall]

Seems like the JIT shouldn't inline any function that is straight-line code leading to a throw (or more generally, where the IL entrypoint is post-dominated by a throw). Maybe we don't have that information, or it would be expensive to compute.

[Edit] I slightly misread the issue, as the throw is in the caller, not callee. So why do we inline any functions at all in this case? the throw is presumably going to dominate any performance.

[EgorBo]

[Edit] I slightly misread the issue, as the throw is in the caller, not callee. So why do we inline any functions at all in this case? the throw is presumably going to dominate any performance.

The initial change in this PR did exactly that but that produced a lot of size regressions and many examples actually affected non-cold path too (e.g. more registers were saved) so I changed it to "Ok, inline only under 8 bytes of IL", mostly for various properties (getters/setters), I tried to play with that threshold and 8 (actually even 9) was the best value.

[BruceForstall]

I guess the size regression was because the call overhead was larger than the generated code for very small functions.
