📽️ Comic-to-Video Generator

This project converts comic chapters into narrated videos using scraping, text-to-speech, and video generation pipelines. It uses a microservice architecture with Redis queues for async job processing.

---

🚀 Features

• Scrape comic chapters and extract text + images
• Generate voiceovers from extracted text
• Stitch images and voice into a video with FFmpeg
• Job queue system using BullMQ + Redis
• Frontend for submitting comic URLs and downloading final videos
• Progress tracking for long-running jobs

---

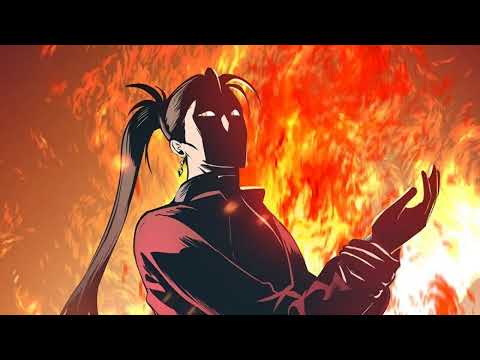

🎥 Demo Video

Check out a generated sample video here:

---

📸 Screenshots

🔹 Frontend UI

Simple web interface to enter comic URLs and generate videos.

---

🔹 Generated Video Output

Final narrated video created from comic images + voiceover.

---

🛠️ Tech Stack

• Backend: Node.js (Express, BullMQ, Redis)

• Services:

  • Scrapping-service → extracts images and chapter text
  • text-extraction-voice-service → text-to-speech (Python pyttsx3)
  • video-generation-service → combines assets into final video with FFmpeg

• Database/Queue: Redis

• Frontend: HTML, CSS, JavaScript (served from public/)

• External Tools: FFmpeg

---

📂 Project Structure

├── Scrapping-service/            # Extracts chapter data
├── text-extraction-voice-service # TTS generation service
├── video-generation-service/     # Video rendering service
├── public/                       # Frontend (HTML, CSS, JS)
├── app.js                        # API Gateway
├── redis.js                      # Redis connection config
├── .gitignore
├── package.json
└── README.md

---

⚙️ Setup

1. Clone the Repo

git clone https://github.com/AyushSGithub24/WebComic-Narration.git
cd WebComic-Narration

2. Install Dependencies

For all services (root + each microservice):

npm install

For text-to-speech service:

pip install pyttsx3

3. Install FFmpeg

• Linux: sudo apt install ffmpeg
• Mac: brew install ffmpeg
• Windows: Download from ffmpeg.org and add to PATH

4. Setup Redis (via Docker)

docker run --name redis -p 6379:6379 -d redis

---

🔑 Environment Variables

Create a .env file in root:

PORT=3000
GEMINI_API_KEY=""
URL="https://manhuatop.org/wp-admin/admin-ajax.php"

---

▶️ Run the Services

Start Redis

docker start redis

Start API Gateway

node app.js

Start Microservices

In separate terminals: Install dependency

cd Scrapping-service && npm i
cd text-extraction-voice-service && npm i
cd video-generation-service && npm i ]

Start All services

node ./Scrapping-service/index.js
node ./text-extraction-voice-service/index.js
node ./video-generation-service/index.js

---

🌐 Frontend Usage

1. Open http://localhost:3000
2. Enter comic URL / chapter number
3. Click Generate Video
4. Wait for job completion (status is polled automatically)
5. Download / play the generated video

---

📊 Job Tracking

• Job queue: Redis + BullMQ
• API /api/generate-video → enqueue job
• API /api/job-status/:id → check progress
• Videos are saved to output/ folder and served via backend

---

🧹 Cleanup (Storage Management)

• Temporary images/audio stored locally
• Auto-delete old files (recommended) or clear manually from /output/

---

✅ Future Improvements

• Authentication (JWT / OAuth)
• WebSocket-based progress updates
• Cloud storage (S3, Cloudinary, Supabase) instead of local
• React frontend for better UX

---

👨‍💻 Author

Developed by AyushSGithub24

---
